| Model Number : | TS-3.91 |
| Brand Name : | TEWEI |
| Supply Ability : | 4000 Set/Sets per Month |
| Price : | Negotiation |
| Certification : | CE RoHS ISO9001 UL FCC CCC |
| Delivery Time : | 20-25 days |

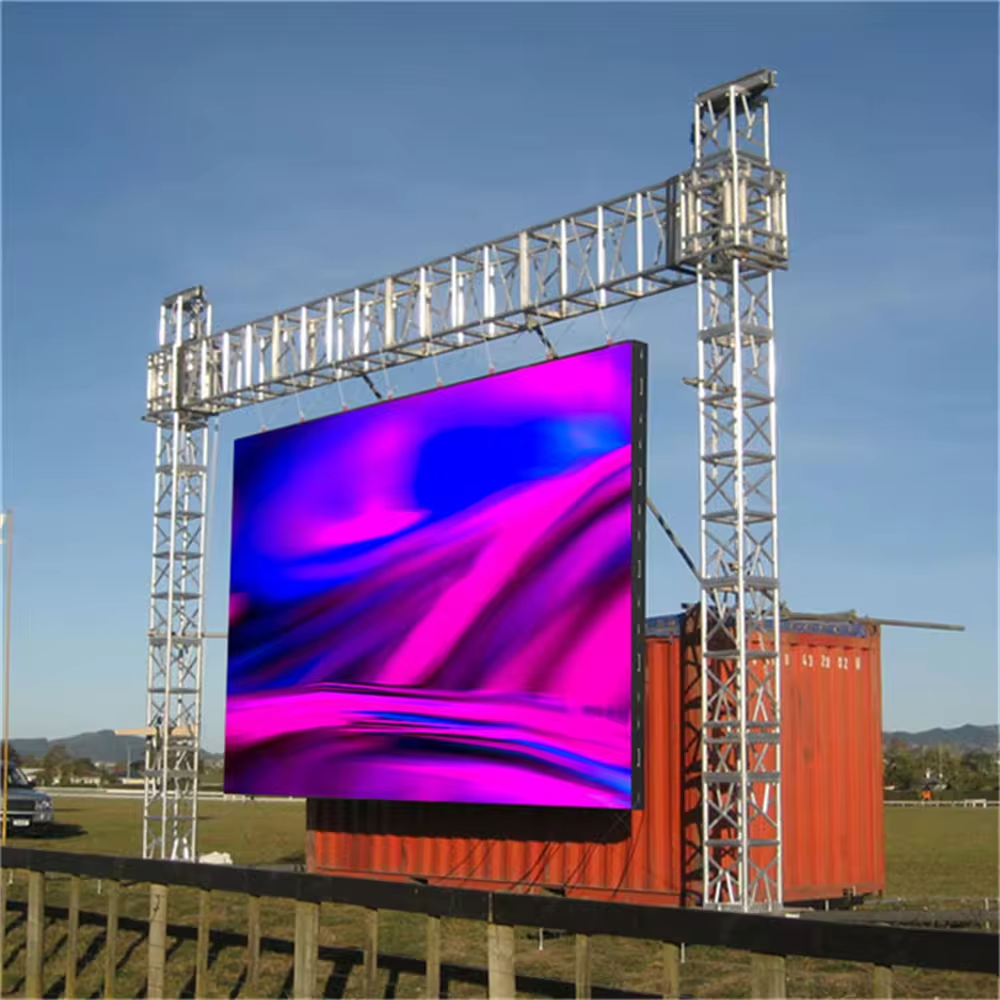

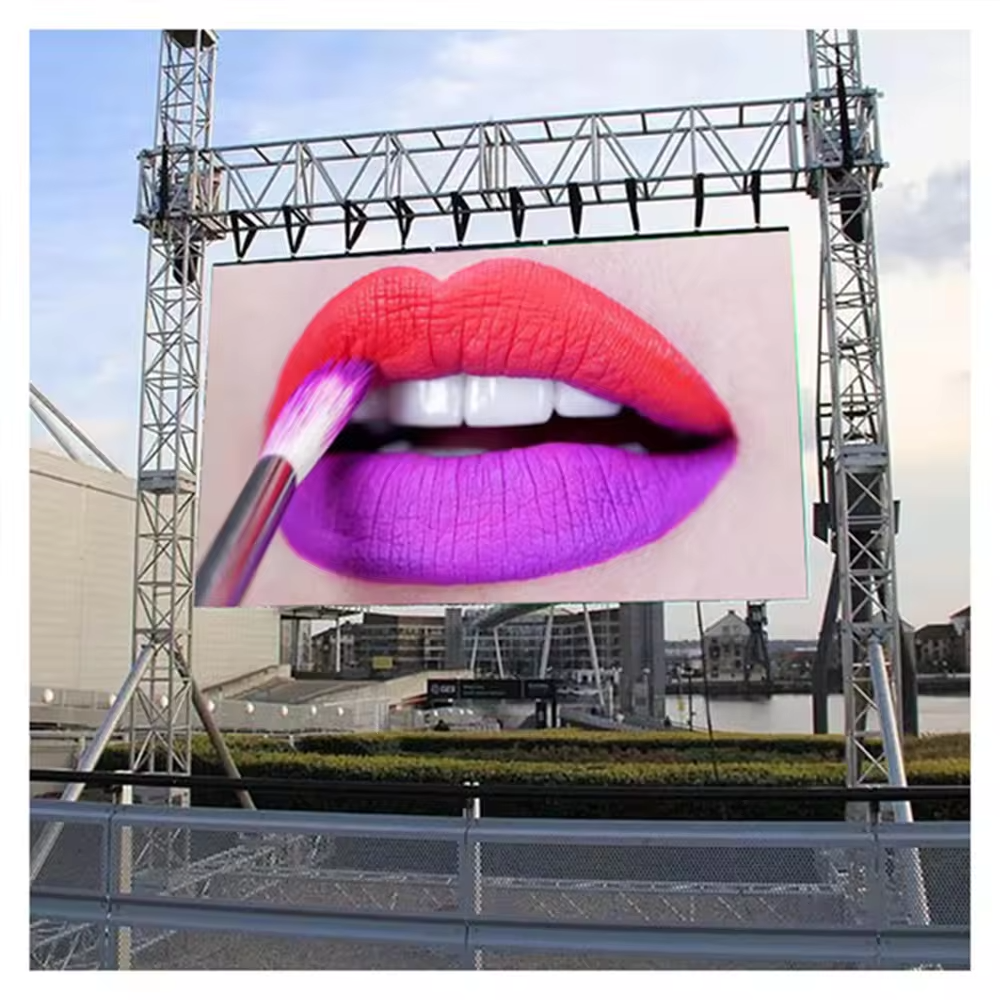

Pixel Pitch Of 3.91mm LED Video Wall Panel For Stage Background Screen In Outdoor Events
| Model | 2.6o | 2.9o | 3.9o | 4.8o |
| Pixel Pitch(mm) | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Density(dot/㎡) | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 |
| Cabinet Resolution(dot*dot) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight(kg) | 8/13 | 8/13 | 8/13 | 8/13 |
| Brihtness(cd/㎡) | 3500~4000 | 3500~4000 | 3500~4000 | 3500~4000 |
| Refresh Rate(hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Gray Scale(bit) | 14 | 14 | 14 | 14 |
| Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
| Max Power Consumption(w/㎡) | 440 | 440 | 440 | 440 |
| Ave Power Consumption(w/㎡) | 132 | 132 | 132 | 132 |
| Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 |
| Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Ingress Pritection | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
|
