| Model Number : | TS-3.9 |
| Brand Name : | TEWEI |
| Supply Ability : | 4000 Set/Sets per Month |
| Price : | Negotiation |
| Certification : | CE RoHS ISO9001 UL FCC CCC |
| Delivery Time : | 20-25 days |

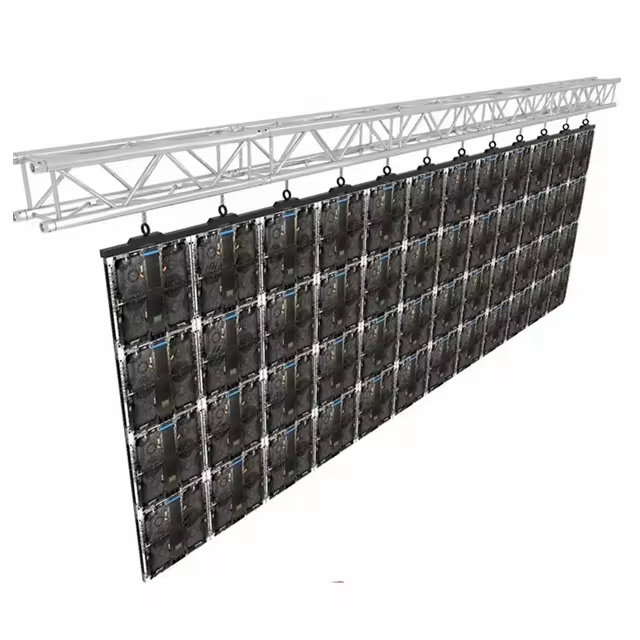

OEM Tewei P3.91mm Full Color 500x1000mm Video Wall Panel Led Display For Indoor Led Screen
★Ultra-high-definition display effect, high-precision seamless splicing, and the gap is accurate to 0.1mm.
★Ultra-high refresh rate, can support video camera shooting, ensure clear picture quality.
★New structural design, meeting the requirements of hoisting and
stacking, flexible and changeable, with strong visual impact,
leaving a deep impression on people.
★Easy to install, use and maintain.
★Fast and convenient assembly and disassembly system, saving
loading and unloading time.
| Model | 1.9i | 2.6i | 2.9i | 3.9i | 4.8i |
| Pixel Pitch(mm) | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Density(dot/㎡) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 |
| Cabinet Resolution(dot*dot) | 256*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight(kg) | 7.5 | 7.5/12 | 7.5/12 | 7.5/12 | 7.5/12 |
| Brihtness(cd/㎡) | 800~1000 | 800~1000 | 800~1000 | 800~1000 | 800~1000 |
| Refresh Rate(hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Gray Scale(bit) | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
| Max Power Consumption(w/㎡) | 440 | 440 | 440 | 440 | 440 |
| Ave Power Consumption(w/㎡) | 132 | 132 | 132 | 132 | 132 |
| Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 | 100~240 |
| Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Ingress Pritection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
|
|
