Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | TEWEI |
| Model Number : | P3.9mm |
| Certification : | ETL/UL/CE/FCC |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 5,000 a month |
| Delivery Time : | 25 days after receiving the 30% deposit or full payment |

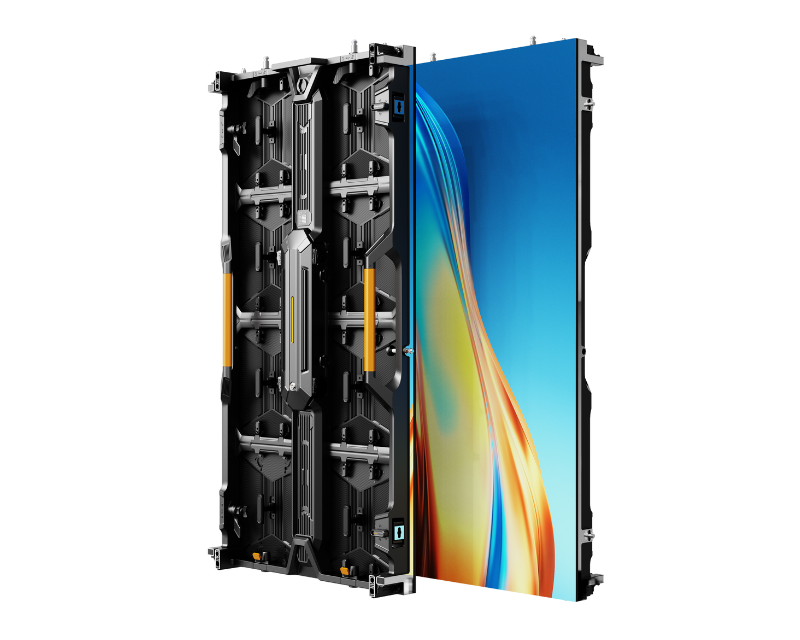

The TEWEI K Series is a versatile and high-performance range of stage rental LED displays designed for various indoor and outdoor applications. The series includes models with pixel pitches ranging from 1.9mm to 4.8mm, catering to different resolution needs. These displays feature SMD LED technology and are available in cabinet sizes of 500x500mm and 500x1000mm, with resolutions and brightness levels suited to diverse environments.
The cabinets are made from die-cast aluminum, ensuring durability while maintaining a lightweight structure, ranging from 7.5kg to 13kg. They support fast assembly with a quick-lock mechanism and positioning pins for accurate and rapid installation. The displays are designed with anti-collision features and corner protectors to prevent damage during transportation.
The K Series offers flexible installation options, including hanging and stacking, and supports creative shapes like concave, flat, and convex formations. The modules can be accessed from both the front and rear, enhancing maintenance efficiency. With refresh rates between 1920Hz and 3840Hz, the displays ensure smooth and flicker-free visuals, making them ideal for dynamic stage environments.
| Model | K 1.9i | K 2.6i | K 2.9i | K 3.9i | K 4.8i |
| Pixel Pitch(mm) | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 |
| Pixel Density(dot/㎡) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 |
| Cabinet Resolution(dot*dot) | 256*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight(kg) | 7.5 | 7.5/12 | 7.5/12 | 7.5/12 | 7.5/12 |
| Brihtness(cd/㎡) | 800~1000 | 800~1000 | 800~1000 | 800~1000 | 800~1000 |
| Refresh Rate(hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Gray Scale(bit) | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
| Max Power Consumption(w/㎡) | 440 | 440 | 440 | 440 | 440 |
| Ave Power Consumption(w/㎡) | 132 | 132 | 132 | 132 | 132 |
| Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 | 100~240 |
| Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Ingress Pritection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
The TEWEI K Series stage rental LED displays have the following features:
Diverse Pixel Pitch Options: Available in various pixel pitches from 1.9mm to 4.8mm, catering to different resolution requirements.
High Brightness and Refresh Rate: Brightness ranges from 800 to 4500cd/㎡, with a refresh rate of 1920Hz to 3840Hz, ensuring clear display and smooth visuals under various lighting conditions.
Durable and Lightweight Cabinet Design: Made from die-cast aluminum, the cabinets are lightweight (7.5kg to 13kg) yet sturdy and durable.
Fast Assembly: Equipped with fast locks and positioning pins, each cabinet can be connected in just 8 seconds, ensuring quick installation and accurate connections.
Anti-Collision Design: Features corner protectors and bottom plates to prevent module damage during transportation.
Flexible Installation: Supports both hanging and stacking installation methods, adaptable to different project requirements. Modules can be accessed from both the front and rear, enhancing maintenance efficiency.
Creative Shapes: Supports various angle adjustments (-5°, -2.5°, 0°, +2.5°, +5°) to achieve concave, flat, and convex shapes, offering a rich visual experience.
Mixed Splicing: 500500mm and 5001000mm cabinets can be mixed and connected up and down flexibly, meeting different screen size requirements.
The TEWEI K Series LED displays are ideal for outdoor applications such as concerts, sporting events, and advertising. Their high brightness (up to 4500cd/㎡) ensures visibility even in bright daylight, while the durable, weather-resistant die-cast aluminum cabinets withstand various environmental conditions. The quick assembly and flexible installation options, including hanging and stacking, make them perfect for fast-paced outdoor events. The anti-collision design protects the modules during transport and setup, ensuring reliable performance throughout the event.
|
|
