Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | Tewei |
| Model Number : | T-REX P10 |
| Certification : | CE/ETL/FCC |
| Price : | Negotiation |
| Delivery Time : | 20-25 days |
| Payment Terms : | T/T 30% deposit before production, 70% balance before delivery |
| Supply Ability : | 4000 Set/Sets per Month |
Our LED video billboards are designed with longevity in mind, which is why we offer warranties ranging from 2-5 years. You can trust that our digital LED billboard factories produce high-quality products that are built to last.
The LED arrangement of our electronic message boards is 1R 1G 1B, which means that each pixel is made up of one red, one green, and one blue LED. This arrangement creates stunning, vibrant colors that will make your message pop. Our brightness level ranges from 6000-6500 cd/㎡, ensuring that your message is visible even in bright sunlight.
Pixel density is also an important factor to consider when choosing an LED video billboard. Our electronic message boards have a pixel density of 10000 dots/㎡, which means that your message will be displayed with incredible clarity and detail.

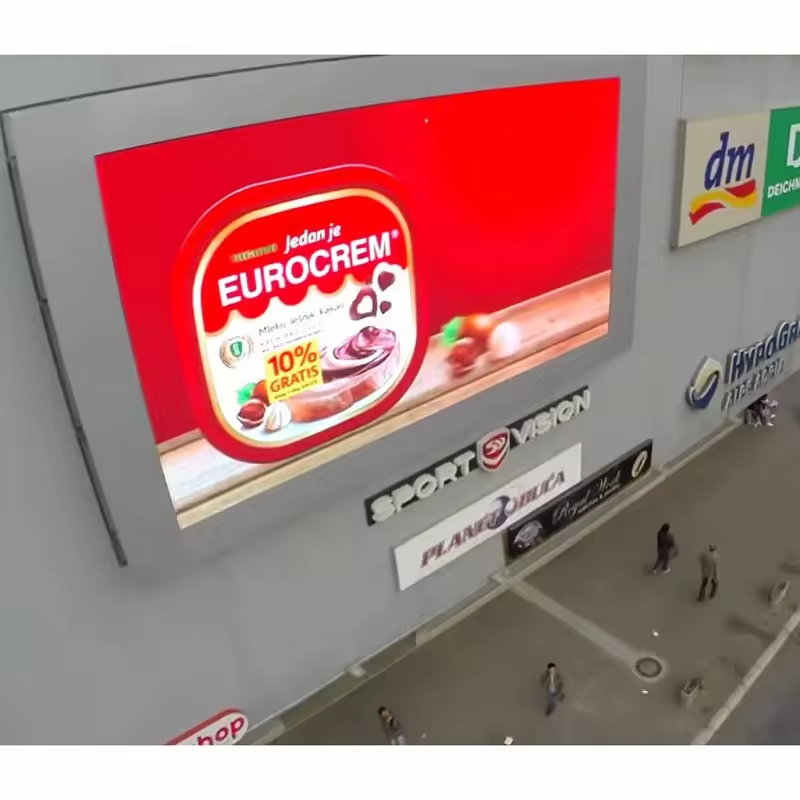

Our LED video billboards are perfect for outdoor advertising, events, and promotions. They are easy to install and operate, and you can customize your message to suit your specific needs. With our LED video billboard, you can make a lasting impression on your target audience.
LED Billboards are full-color LED screens that are ideal for outdoor digital signage. With a pixel pitch of P10, LED Type of SMD3535, Led Arrangement of 1R 1G 1B, Refresh Rate of 3840hz, and Gray Scale of 14-bit, these LED video billboards deliver high-quality and vibrant displays that can grab the attention of your target audience.
| Model | TR 4 | TR 6.67 | TR 8 | TR 10 |
| Pixel Pitch(mm) | P4 | P6.67 | P8 | P10 |
| Pixel Density(dot/㎡) | 62,500 | 22,500 | 15,625 | 10,000 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Module Size(mm*mm) | 480X320 | 480X320 | 480X320 | 480X320 |
| Module Resolution(dot*dot) | 120X80 | 72X48 | 60X40 | 48X32 |
| Cabinet Size(mm*mm*mm) | 960x960x110 | |||
| Cabinet Resolution(dot*dot) | 240x240 | 144x144 | 120x 120 | 96x96 |
| Cabinet Material | Aluminum | |||
| Cabinet Weight(kg) | 22 | |||
| Brihtness(cd/㎡) | 5500-6000 | 5500-6000 | 6000-6500 | 6000-6500 |
| Refresh Rate(hz) | 3840 | |||
| Gray Scale(bit) | 14 | |||
| Viewing Angle (HA) | 140/140 | |||
| Max Power Consumption(w/㎡) | 750 | |||
| Ave Power Consumption(w/㎡) | 248 | |||
| Input Voltage(V) | 100~240 | |||
| Working Temperature(℃) | -20~+60 | |||
| Operation Humidity(rh) | 10%-85% | |||
| Ingress Pritection | IP65 | |||
| Working Environment | Outdoor | |||
| Life Span(H) | 100,000 | |||
| Certificate | CE/ETL/FCC | |||
|
|
