Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | TEWEI |
| Model Number : | JF-3.9-7.8O |
| Certification : | EMC/EC/FCC/LVD/ETL/ROHS |
| Price : | Negotiable |
| Supply Ability : | 4000 Set/Sets per Month |
More reasons to choose a transparent led display......

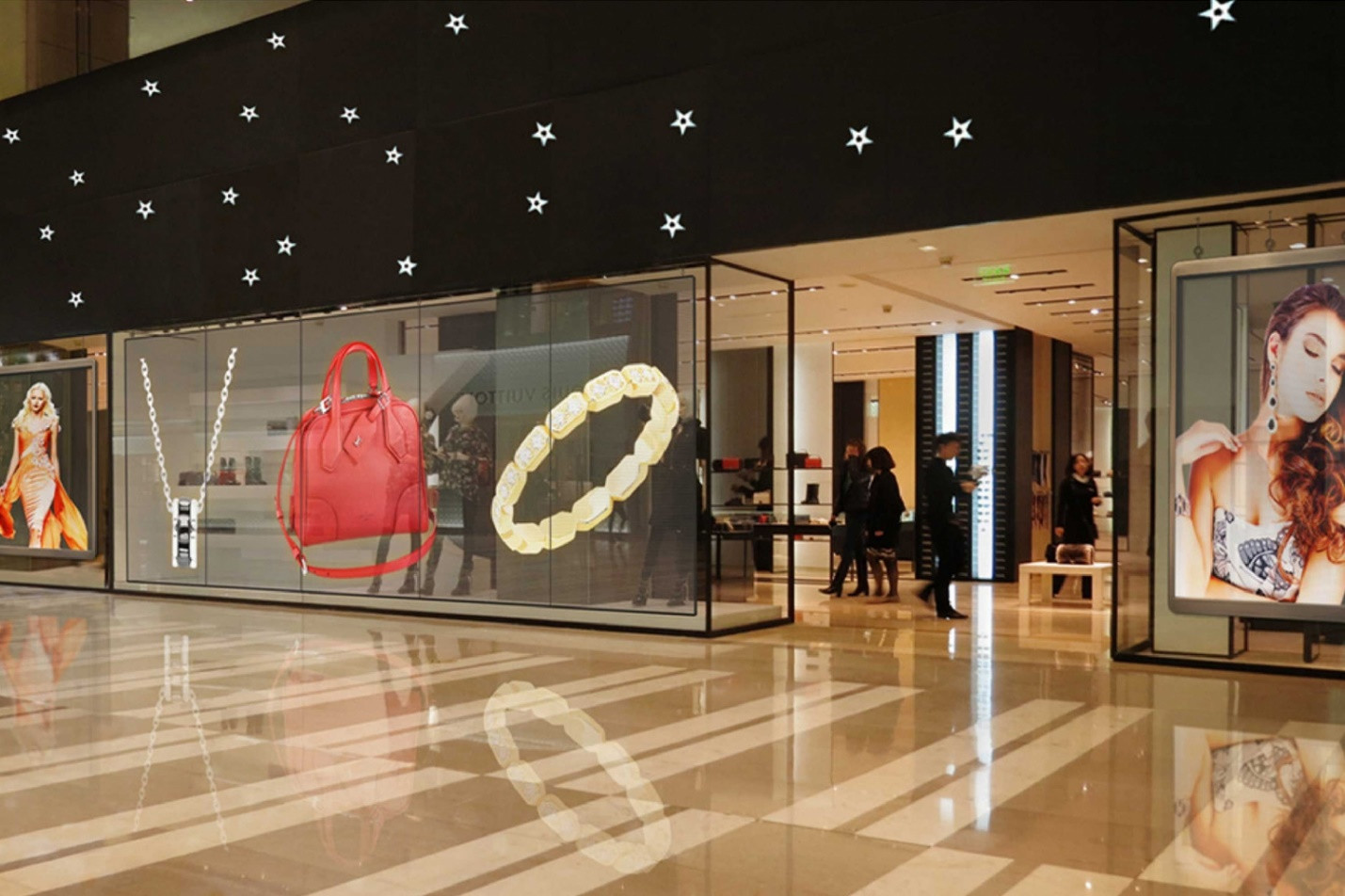

Transparent LED Display is no doubt the best choice as windows ads
player, without sacrifice ventilate and natural light with the
45%~90% transparency, you won’t miss any view from it.
Transparent LED Display is ultra slim and thin, easy for
installation and transportation, time and labor efficient.
The quick lock system of Transparent LED Display secured quick and
fast connection.
Integrated power and data cables save lots of trouble when
installing Transparent LED Display and make it looks tidy and
elegant.
Transparent LED Display can only be installed indoors, but also
viewable from outside of the building, high brightness and high
definition making a stunning effect of your ads to passers.
Transparent LED Display possesses transparent and modern product
aesthetics which can benefit to installation over windows, glass
façade and for creative event production as well.
It is lightweight and ultrathin, making deployment a breeze.
High transparency guarantees natural view behind the screen while
delivering clear and crisp contents viewable for both day and
night.
Products Specifications
| Model | JF 2.6-5.2 | JF 3.91-7.81 | JF 7.81-7.81 | JF 10.4-10.4 |
| Pixel Pitch(mm) | P2.6-5.2 | P3.91-7.81 | P7.81-7.81 | P10.4-10.4 |
| Pixel Density(dot/㎡) | 73,728 | 32,768 | 16,834 | 9,216 |
| Module Size(mm*mm) | 192x24 | 128x16 | 64x16 | 48x12 |
| Module Resolution(dot*dot) | 84*84 | 64*64 | 52*52 | 52*52 |
| Cabinet Size(mm*mm*mm) | 1000x500mm | 1000x500mm | 1000x500mm | 1000x500mm |
| Cabinet Resolution(dot*dot) | 384x96 | 256x64 | 128x64 | 96x48 |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Transparancy | >42% | >65% | >65% | >75% |
| Cabinet Weight(kg) | 10 | 10 | 10 | 10 |
| Brihtness(cd/㎡) | 800-4500CD | 800-4500CD | 800-4500CD | 800-4500CD |
| Refresh Rate(hz) | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Gray Scale(bit) | 14 | 14 | 14 | 14 |
| Viewing Angle(deg) | H 160/V140 | H 160/V140 | H 160/V140 | H 160/V140 |
| Max Power Consumption(w/㎡) | 800 | 800 | 800 | 800 |
| Ave Power Consumption(w/㎡) | 270 | 270 | 270 | 270 |
| Input Voltage(V) | 100~240 | 100~240 | 100~240 | 100~240 |
| Working Temperature(℃) | -20~+60 | -20~+60 | -20~+60 | -20~+60 |
| Operation Humidity(rh) | 10%~90% | 10%~90% | 10%~90% | 10%~90% |
| Ingress Pritection | IP65 | IP65 | IP65 | IP65 |
| Working Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Life Span(H) | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificate | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC | CE/ETL/FCC |
Products Features
Products Applications
1) LED screen for shopping mall
2) LED screen for retail store
3) LED screen for Exhibition and Event
4) Interactive LED display
5) 3D LED display
|
|
