Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | TEWEI |
| Model Number : | P4.16 P5 P6.25 P8.33 P10 |
| Certification : | CE,RoHS,ISO,UL,FCC,CCC,ETL,EMC,LVD |
| Price : | Negotiation |
| Delivery Time : | 20-30day |
| Payment Terms : | T/T,EXW |
| Supply Ability : | 4000sqm per month |
The large stadium LED display screen is designed to provide efficient and reliable performance. It features a cabinet flatness of ≤ 0.1 mm, ensuring that the display remains flat and stable, even when exposed to harsh environmental conditions. The constant current drive, 1/6 scan driving mode ensures that the screen delivers high-quality images without any flickering or ghosting.
The Stadium LED Screen is built to last, with a lifespan of up to 100,000 hours. This makes it a cost-effective investment for any business or organization that requires a large stadium LED display screen for long-term use. In addition, the screen is designed for both front and rear maintenance, making it easy to maintain and repair.
The module composition of the Stadium LED Screen is 4X3, providing a large and seamless display. This makes it perfect for large-scale events where a high-quality display is essential. The screen is also easy to install, making it ideal for temporary installations, such as outdoor events or exhibitions.
In conclusion, if you are looking for a large stadium LED display screen that provides high-quality images, efficient performance, and long-term reliability, the Stadium LED Screen is the perfect choice. Its outstanding features, including its cabinet flatness, constant current drive, 1/6 scan driving mode, and long lifespan, make it an ideal investment for any business or organization that requires a large display screen for their events.
With models including the P4.16, P5, P6.25, P8.33, and P10, TEWEI's Stadium LED Screen product is versatile and customizable to meet your specific needs. Made in Guangdong, China, this product has been certified with CE, RoHS, ISO, UL, FCC, CCC, ETL, EMC, and LVD, ensuring its quality and safety.
The minimum order quantity for this product is negotiable, as is the price. Packaging options include flight case, wooden case, or carton. Delivery time is estimated to be between 20-30 days, and payment terms are T/T, EXW. TEWEI has a supply ability of 4000sqm per month, making it a reliable choice for those in need of a large stadium LED display screen.
TEWEI's Stadium LED Screen product is perfect for front maintenance and rear maintenance, and boasts a module size of 400X300 with a module composition of 4X3. The driving mode is constant current drive, 1/6 scan, and the brightness (nits) is 6500, ensuring a clear and vibrant display.
Some application occasions and scenarios for TEWEI's Stadium LED Screen product include:

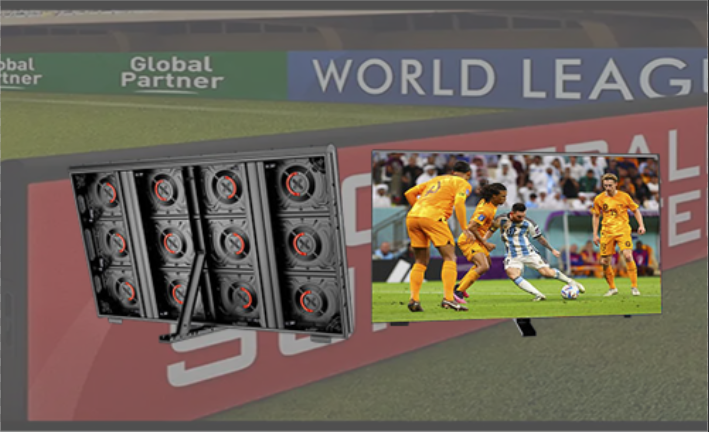

Whether you need a large LED video screen rental for stadiums and arenas, or a football stadium perimeter LED screen display, TEWEI's Stadium LED Screen product is a reliable and high-quality choice.
The Stadium LED Screen product technical support and services include:
| Model | P4.16 | P5 | P6.25 | P8.33 | P10 |
| Pixel Pitch(mm) | P4.16 | P5 | P6.25 | P8.33 | P10 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density(dot/㎡) | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module Resolution | 96X72 | 80X60 | 64X48 | 48X36 | 40X30 |
| Module Size(mm*mm) | 400X300 | 400X300 | 400X300 | 400X300 | 400X300 |
| Module composition(WxH) | 4X3 | 4X3 | 4X3 | 4X3 | 4X3 |
| Cabinet Resolution(dot*dot) | 384x216 | 320x180 | 256x144 | 192x108 | 160x90 |

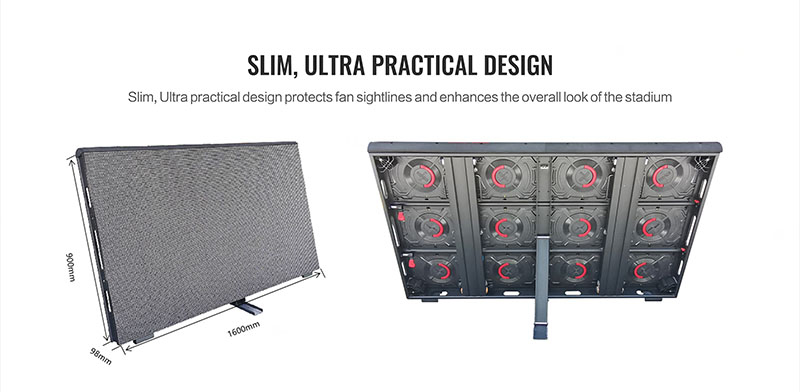

| Cabinet Size(mm*mm*mm) | 1600X900X98 | 1600X900X98 | 1600X900X98 | 1600X900X98 | 1600X900X98 |
| Cabinet Flatness(mm) | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 |
| Maintenance Way | Front Maintenance & Rear Maintenance | ||||
| Brightness (nits) | 6500 | ||||
| ColorTemperature (K) | 3200-9300 adjustable | ||||
| Gray Scale | 65536 | ||||
| Contrast | 5000:1 | ||||
| Frame Rate (Hz) | 50/60 | ||||
| Driving Mode | Constant current drive,1/6 Scan | ||||
| Cabinet Material | Aluminum | ||||
| Cabinet Weight(kg) | 5.8/4.6 | ||||
| Refresh Rate(hz) | 3840 | ||||
| Gray Scale(bit) | 14 | ||||
| Viewing angle(horizontal/vertical) | 160°/140° | ||||
| Max Power Consumption(w/㎡) | 600-800 | ||||
| Ave Power Consumption(w/㎡) | 100-200 | ||||
| Input Voltage(V) | 100~240 | ||||
| Working Temperature(℃) | -20~+60 | ||||
| Operation Humidity(rh) | 10%~90% | ||||
| Ingress Pritection | IP65 | ||||
| Working Environment | Outdoor | ||||
| Life Span(H) | 100,000 | ||||
| Certificate | CE/ETL/FCC | ||||
Best image quality
The HD LED display shows vivid images.
High refresh rate is up to 3840HZ,The screendisplay has no lagsand flicker.It is response,smooth and stable.
| Our company has advanced modern production equipment, scientific and rigorous management methods, focusing on details and quality. We have a high-quality team to provide customers with stable high quality and cost-effective products. |
TEWEI offers a comprehensive range of services, from analysis and design to development, deployment, and maintenance, all tailored to meet your specific technical requirements. |
|
| With a team of experienced experts and a proven track record of delivering over 1000 successful projects worldwide, TEWEI is the trusted solution for all your needs. |
Our packaging is available in wooden or flight cases, and we can help you customize your logo on the case! |
|
| We support the three major transportation by sea,land and air to ensure that your goods can arrive on time. |
Q1. What is your terms of packing?
A:Usually, we pack our goods in neutral wooden cases and flight cases. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letter.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the item and your order quantity.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is your best service?
1: One to one sales engineer to customer responsibility system; 2. Know your project and provide the best solution for it;, 3. Track your order and let you know each step and detail of it; 4. Teach you how to install and use the screen; 5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q10:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen... don't worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
|
|
