Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | TEWEI |
| Model Number : | DF-1.9mm/2.6mm/3.1mm/3.9mm |
| Certification : | EMC/CE/FCC/LVD/ETL/ROHS |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 4000 Set/Sets per Month |
| Delivery Time : | 15-20 days |
Product Introduction:

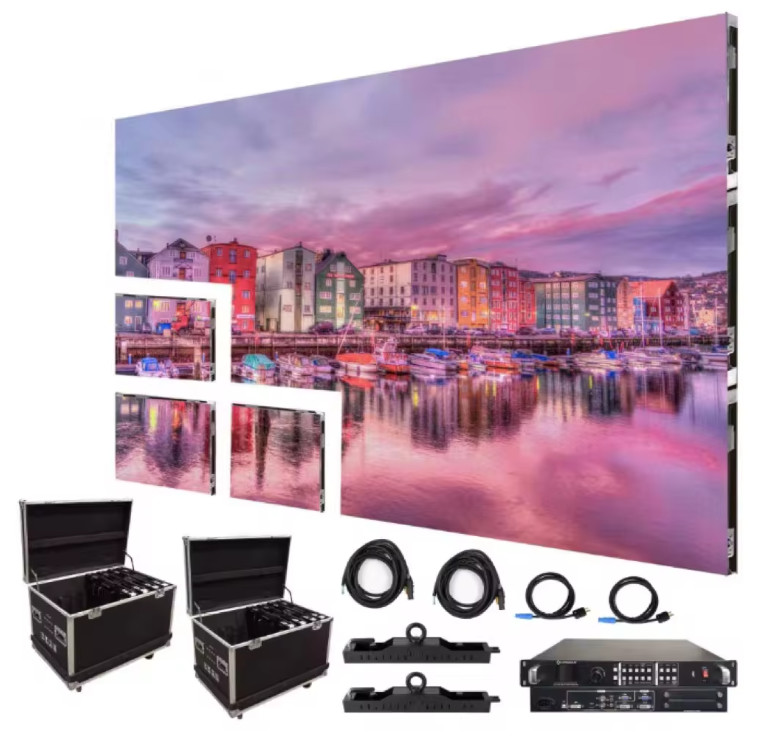

This Indoor Fixed Led Display Screen is a high-quality display screen that is suitable for a wide range of indoor
applications. It is designed to provide clear and vivid images, making it an ideal choice for advertising, exhibitions, and
other events.
| Model | TW-DF1.9 | TW-DF2.6 | TW-DF3.9 |
| Pixel Pitch(mm) | P1.9 | P2.6 | P3.9 |
| Pixel Density(dot/㎡) | 262144 | 147456 | 65536 |
| LED Type | SMD1515 | SMD2121 | SMD2121 |
| Module Size(mm*mm) | 250*250 | ||
| Module Resolution(dot*dot) | 128*128 | 96*96 | 64*64 |
| Cabinet Size(mm*mm*mm) | 1000*500*43 | ||
| Cabinet Resolution(dot*dot) | 512*256 | 384*192 | 256*128 |
| Cabinet Material | Aluminum | ||
| Cabinet Weight(kg) | 7.5 | ||
| Brihtness(cd/㎡) | 800~1000 | ||
| Refresh Rate(hz) | 3840 | ||
| Gray Scale(bit) | 14 | ||
| Viewing Angle(deg) | H 160/V140 | ||
| Max Power Consumption(w/㎡) | 440 | ||
| Ave Power Consumption(w/㎡) | 130 | ||
| Input Voltage(V) | 100~240 | ||
| Working Temperature(℃) | -20~+60 | ||
| Operation Humidity(rh) | 10%~90% | ||
| Ingress Pritection | IP21 | ||
| Working Environment | Indoor | ||
| Life Span(H) | 100,000 | ||
| Certificate | CE/ETL/FCC | ||
|
|
