Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | TEWEI |
| Model Number : | YX P1.25-P4mm |
| Certification : | CE RoHS ISO9001 UL CCC ETL FCC EMC LVD |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 4000 Set/Sets per Month |
| Delivery Time : | 15-20 day |
10
The LED soft module is a new technology of LED display, which uses flexible materials to manufacture LED display panels that can be bent, folded, and in other shapes. Examples include cylindrical displays, or other unconventional shapes not possible with traditional rigid LED panels.
These modules are usually composed of an LED matrix embedded in a flexible substrate, allowing them to fit on curved or irregular surfaces, and are generally used indoors. Compared with conventional indoor LED screen modules, the biggest advantage of LED soft modules is that they are very flexible and can be bent to 120°.
LED soft modules are flexible, so they can be used in creative displays and often provide high-resolution and vivid visual output while being able to adapt to different environments due to their bendable properties.
1) High Flexibility: The Flex LED Module can bend front and back into a certain radian, suitable for various designs like rolled, bent, and swing shapes.
2) Super Thin and Light: The Flex Tile weighs only a few hundred grams per tile and is thin (<6mm in thickness).
3) Front or Rear Service: With magnets, the Flexible LED Display module can be installed by sticking to the structure and supports removal from the front.
4) No Cabinet: Without a cabinet metal frame, it significantly reduces the screen weight and cost, and allows for designing any shape according to customer needs.
5) Easy to Splice, Install, and Maintain: The modularization design and no other connected cables make installation effortless. Users just need to mount the iron sheet or magnetic product on the surface first, then stick the Flexible LED sign on it.
Application Scenarios:
1) Hotel Advertising
2) Stage Renting
3) Television
4) Shopping Malls
5) Outdoor Stadiums
6) Concerts
7) Fairgrounds

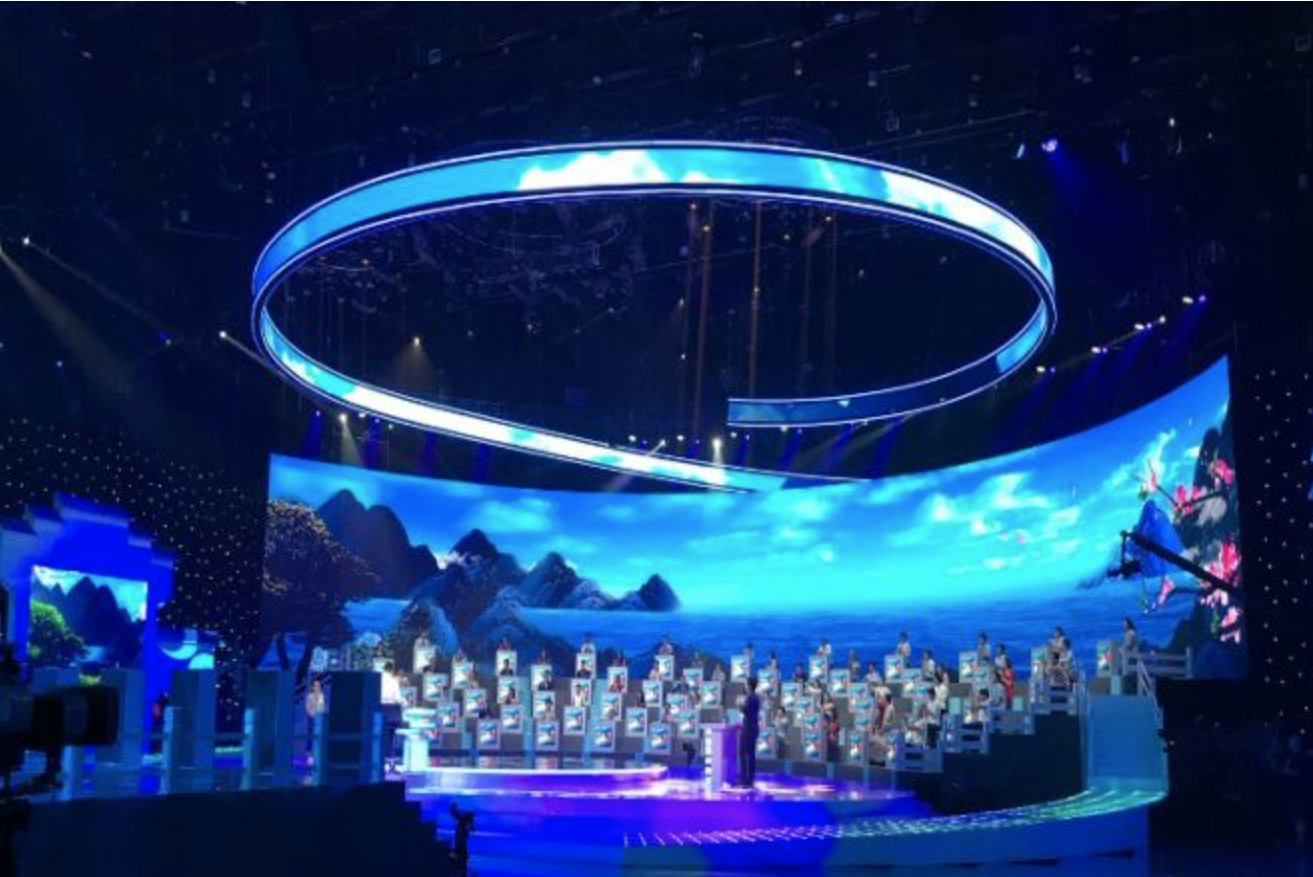

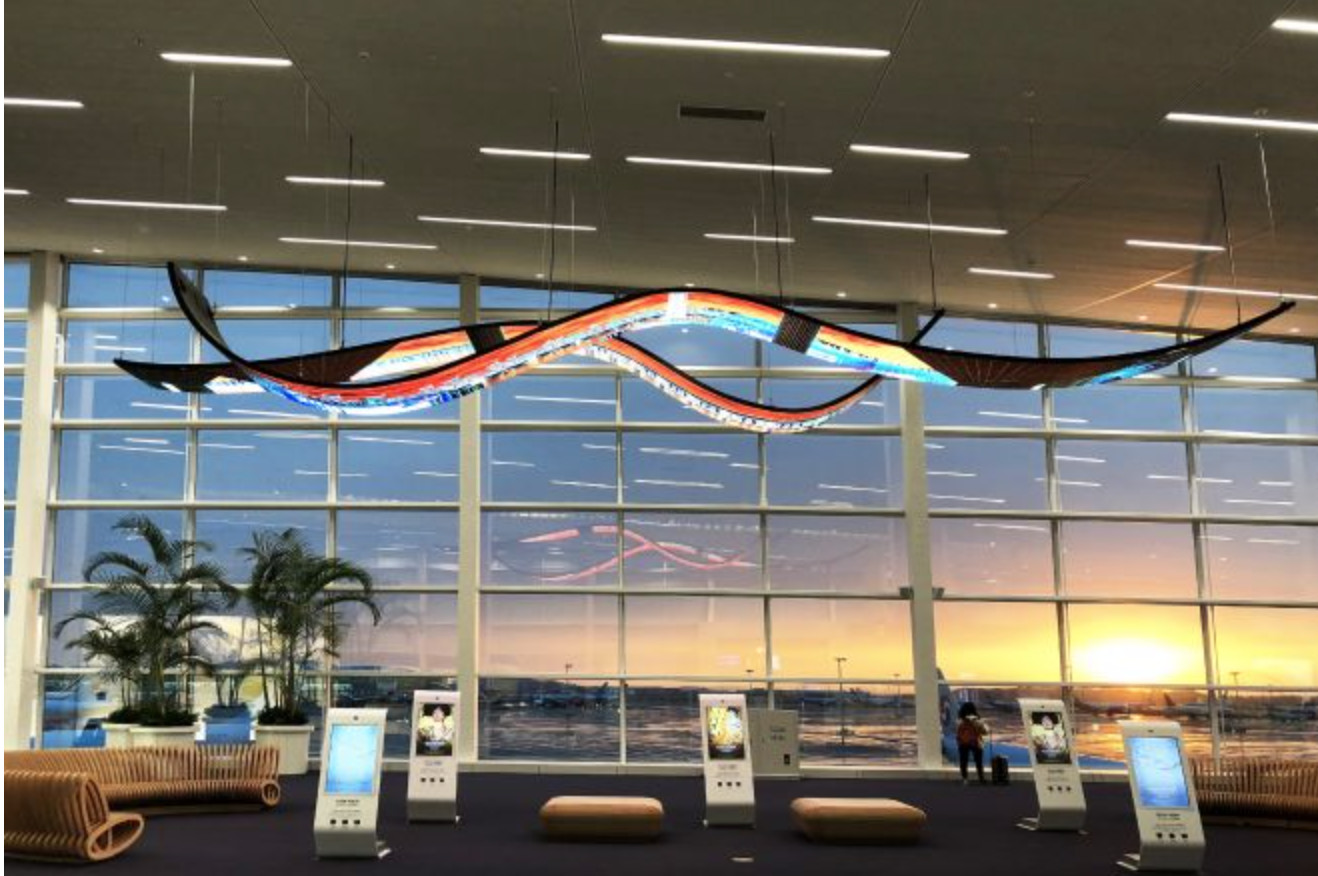

8) Irregular Buildings
9) Indoor Exhibitions
10) Digital Signage
Application Specifications:
| 240*120mm Dimension Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 1.25mm | 640000 | 192*96 | 240*120mm | 1/48 | ≥3840Hz | SMD1010 | 700-900cd |
| 1.5625mm | 409,600 | 128*96 | 240*120mm | 1/48 | ≥3840Hz | SMD1212 | 700-900cd |
| 1.579mm | 401111 | 152*76 | 240*120mm | 1/38 | ≥3840Hz | SMD1212 | 700-900cd |
| 1.667mm | 360000 | 144*72 | 240*120mm | "1/24 | ≥3840Hz | SMD1212 | 700-900cd |
| 1.875mm | 284444 | 128*64 | 240*120mm | "1/32 | ≥3840Hz | SMD1212 | 700-900cd |
| 2mm | 250000 | 120*60 | 240*120mm | "1/30 | ≥3840Hz | SMD1515 | 700-900cd |
| 2.5mm | 160000 | 96*48 | 240*120mm | "1/24 | ≥3840Hz | SMD1515 | 700-900cd |
| 3mm | 111111 | 80*40 | 240*120mm | "1/20 | ≥3840Hz | SMD2121 | 700-900cd |
| 4mm | 62500 | 60*30 | 240*120mm | "1/15 | ≥3840Hz | SMD2121 | 700-900cd |
| 256*128mm Dimension Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 2mm | 250000 | 128*64 | 256*128mm | 1/32 | ≥1920Hz | SMD1515 | 700-900cd |
| 4mm | 62500 | 64*32 | 256*128mm | "1/16 | ≥1920Hz | SMD2121 | 700-900cd |
| 320*160mm Dimension Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 1.86mm | 288906 | 172*160 | 320*160mm | "1/43 | ≥3840Hz | SMD2121 | 700-900cd |
| 2mm | 250000 | 160*80 | 320*160mm | "1/40 | ≥3840Hz | SMD1515 | 700-900cd |
| 2.5mm | 160000 | 128*64 | 320*160mm | "1/32 | ≥3840Hz | SMD1515 | 700-900cd |
| 3mm | 105625 | 104*52 | 320*160mm | "1/26 | ≥3840Hz | SMD2121 | 700-900cd |
| 4mm | 62500 | 80*40 | 320*160mm | "1/16 | ≥3840Hz | SMD2121 | 700-900cd |
| 5mm | 40000 | 64*32 | 320*160mm | "1/16 | ≥3840Hz | SMD2121 | 700-900cd |
| 8mm | 15625 | 40*20 | 320*160mm | "1/5 | ≥3840Hz | SMD2121 | 700-900cd |
| Outdoor Waterproof Models | |||||||
| Pixel Pitch | Pixels/㎡ | Resolution | Dimension | Scan | Refresh Rate | LED Model | Brightness |
| 2.5mm | 160000 | 128*64 | 320*160mm | "1/24 | ≥3840Hz | SMD1415 | 4500-5000cd |
| 3mm | 97656 | 80*40 | 256*128mm | "1/20 | ≥3840Hz | SMD1921 | 4500-5000cd |
| 4mm | 62500 | 80*40 | 320*160mm | "1/16 | ≥3840Hz | SMD1921 | 4500-5000cd |
| 5mm | 40000 | 64*32 | 320*160mm | "1/16 | ≥3840Hz | SMD1921 | 4500-5000cd |
| 8mm | 15625 | 40*29 | 320*160mm | "1/5 | ≥3840Hz | SMD3535 | 4500-5000cd |
 | Our company has advanced modern production equipment, scientific and rigorous management methods, focusing on details and quality. We have a high-quality team to provide customers with stable high quality and cost-effective products. |
| TEWEI offers a comprehensive range of services, from analysis and design to development, deployment, and maintenance, all tailored to meet your specific technical requirements. |  |
 | With a team of experienced experts and a proven track record of delivering over 1000 successful projects worldwide, TEWEI is the trusted solution for all your needs. |
Our packaging is available in wooden or flight cases, and we can help you customize your logo on the case! |  |
 | We support the three major transportation by sea,land and air to ensure that your goods can arrive on time. |
Q1. What is your terms of packing?
A:Usually, we pack our goods in neutral wooden cases and flight cases. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letter.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB
Q4. How about your delivery time?
A: Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the item and your order quantity.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is your best service?
1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q10:How about your Warranty Term?
A: 2-year warranty. Structure design, installation problem, system problem, how to use the screen... don't worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
|
|
