Top-class LED Display Manufacturer in China. services more than 120 countries around the world!
2 Years
| Ask Lasest Price | |
| Brand Name : | Tewei |
| Model Number : | Jellyfish P7.81-7.81 |
| Certification : | CE RoHS ISO9001 UL FCC CCC |
| Delivery Time : | 20-25 days |
| Payment Terms : | T/T 30% deposit before production, 70% balance before delivery |
| Supply Ability : | 4000 Set/Sets per Month |
| Price : | Negotiation |

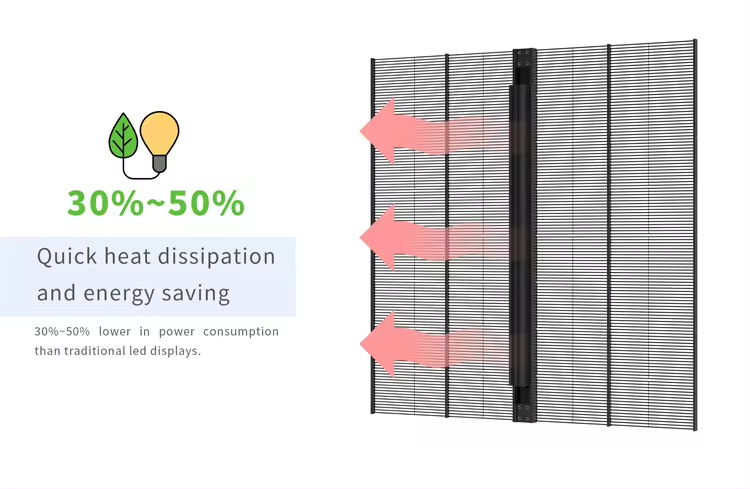

With a maximum power consumption of 800 watts per square meter, the Transparent LED Screen product is a highly efficient and cost-effective display solution that is perfect for businesses and organizations of all sizes. This product is designed to function as an indoor fixed LED screen, providing a reliable and visually striking display that is sure to capture the attention of your audience.
The Transparent LED Screen product is built to withstand a wide range of operating temperatures, with a range of -20 to +60 degrees Celsius. This makes it a versatile and reliable display option that is perfect for use in a range of indoor environments, from large conference halls and exhibition spaces to small retail stores and restaurants.
Our Transparent LED Screen product is designed to operate on a wide range of input voltages, with a range of 100 to 240 volts. This ensures that it is compatible with a wide range of power supplies, making it an ideal choice for businesses and organizations of all kinds.
If you are looking for a reliable and visually impressive display solution for your business or organization, our Transparent LED Screen product is the perfect choice. With its impressive features, versatile functions, and striking design, it is sure to capture the attention of your audience and provide an unforgettable visual display experience.
| Model | JF 2.6-5.2 | JF 3.91-7.81 | JF 7.81-7.81 |
| Pixel Pitch(mm) | P2.6-5.2 | P3.91-7.81 | P7.81-7.81 |
| Pixel Density(dot/㎡) | 73,728 | 32,768 | 16,834 |
| Module Size | 500X125mm | 500X125mm | 500X125mm |
| Module Resolution(mm*mm) | 192x24 | 128x16 | 64x16 |
| Cabinet Size(mm*mm*mm) | 1000mm*1000mm*82mm/1000mm*500mm*82mm | ||
| Cabinet Resolution(dot*dot) | 384x96 | 256x64 | 128x64 |
| Cabinet Material | Aluminum | ||
| Transparancy | >42% | >65% | >65% |
| Cabinet Weight(kg) | 10 | ||
| Brihtness(cd/㎡) | 800-4500CD | ||
| Refresh Rate(hz) | ≥1920Hz | ||
| Gray Scale(bit) | 14 | ||
| Viewing Angle(deg) | H 160/V140 | ||
| Max Power Consumption(w/㎡) | 800 | ||
| Ave Power Consumption(w/㎡) | 270 | ||
| Input Voltage(V) | 100~240 | ||
| Working Temperature(℃) | -20~+60 | ||
| Operation Humidity(rh) | 10%~90% | ||
| Ingress Pritection | IP31 | ||
| Working Environment | Indoor | ||
| Life Span(H) | 100,000 | ||
| Certificate | CE/ETL/FCC | ||
|
|
